SKYZONE FPV Review 2026: Analog Goggles, OLED Displays, Pricing, and Best Models

What this SKYZONE FPV review covers

SKYZONE develops first-person-view video equipment for radio-controlled aircraft, racing drones, fixed-wing models, and other civilian FPV applications. Its official store focuses on analog FPV goggles, OLED and LCD headsets, box goggles, external monitors, diversity and mixing receiver modules, antennas, cameras, video transmitters, accessories, spare parts, firmware, and selected digital-video products.

This review focuses on the buying decision: display type, resolution, field of view, receiver design, DVR, HDMI input, head tracking, focus adjustment, battery and power requirements, current prices, worldwide shipping, returns, warranty, local radio rules, and four representative products. It is a research-based editorial review using SKYZONE's official product, comparison, shipping, return, service, and support pages rather than independent latency, RF-sensitivity, range, or long-term durability testing by PlainlyPicked.

Understand the FPV video system before buying

An FPV headset or monitor is only one part of the video link. The aircraft normally needs a compatible camera, video transmitter, antenna, power system, and radio-control equipment. The featured SKYZONE products primarily receive analog 5.8GHz video, although selected models also provide HDMI input for use with compatible external digital receivers.

Analog and digital ecosystems are not automatically interchangeable. A high-resolution OLED panel does not convert an analog transmission into native HD video, and an external digital receiver may require its own power, HDMI cable, firmware, air unit, and compatible goggles or display.

Analog image quality versus panel resolution

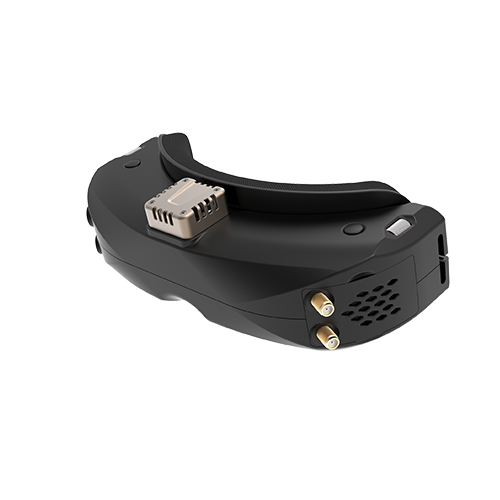

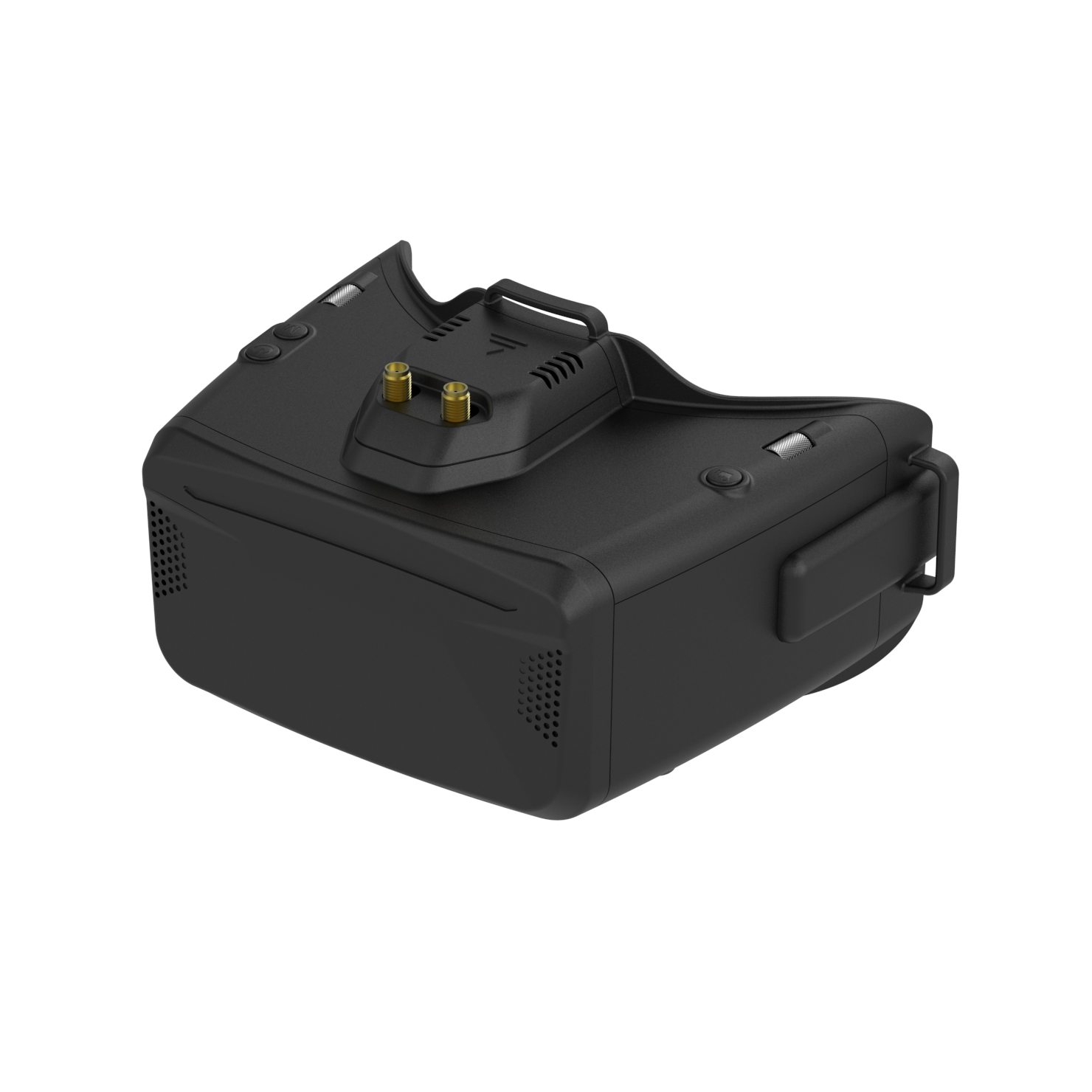

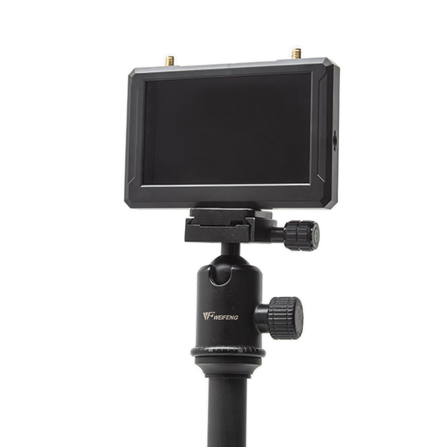

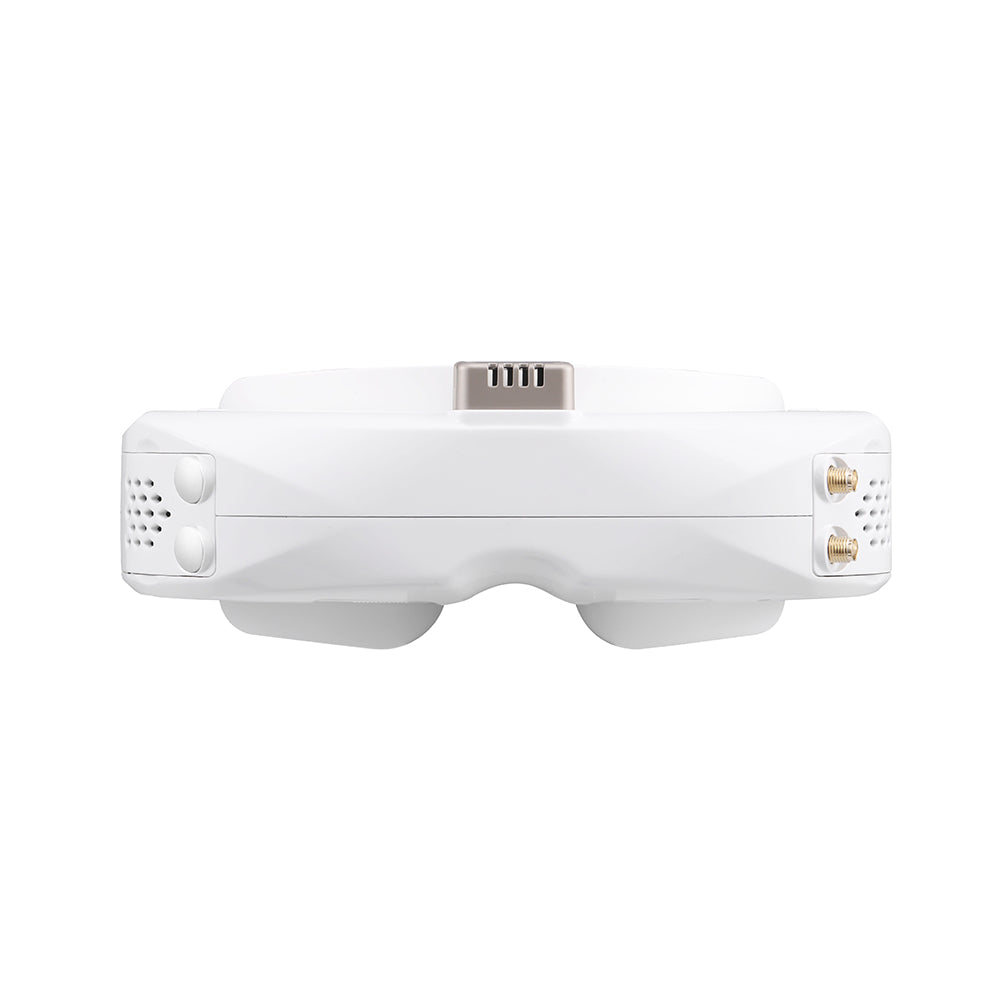

SKY04X Pro uses 1920×1080 OLED panels, SKY04O Pro uses 1280×720 OLED, Cobra X V4 uses a 1280×720 LCD, and M5 uses an 800×480 high-brightness LCD. Higher panel resolution improves menus, DVR playback, HDMI-source presentation, and the overall viewing experience, but the received analog signal remains limited by the camera, transmitter, interference, multipath conditions, and analog-video format.

OLED displays generally provide stronger black levels and contrast than ordinary LCD panels. Box goggles such as Cobra X V4 use one larger display and different optics, which can provide a wide image at a lower price but create a bulkier headset.

Field of view, optics, and fit

The featured goggles list diagonal fields of view of 52° for SKY04X Pro, 42° for SKY04O Pro, and 50° for Cobra X V4. A wider field can feel more immersive, but it can also make corners harder to scan and may not suit every pilot.

SKY04X Pro and SKY04O Pro provide adjustable focus and an interpupillary-distance range of approximately 58–71mm. Fit still depends on face shape, eye position, prescription, foam thickness, nose clearance, strap adjustment, and whether glasses are worn.

Buyers should confirm whether their eyesight falls within the stated focus range. Goggles should not be assumed to replace prescription correction or to fit every pair of glasses.

Receiver design and SteadyView

The featured headsets and monitor use SKYZONE receiver technology that can compare or combine two antenna signals. Diversity mode normally chooses the stronger signal, while mixing or SteadyView processing attempts to merge the inputs to reduce tearing and rolling during multipath or weak-signal conditions.

No receiver eliminates dead zones, interference, blocked line of sight, poor antennas, incorrect polarization, low transmitter power, damaged coaxial cables, or illegal operating conditions. Antenna placement and matching remain essential.

DVR and memory cards

SKY04X Pro and Cobra X V4 list H.264 60fps DVR, while SKY04O Pro and M5 list MJPEG 60fps recording. The goggles and monitor support removable storage up to the limits stated on their product pages, commonly 128GB for the featured analog products.

DVR footage is useful for reviewing flights, finding a lost model, sharing clips, and diagnosing video breakup. It should not be confused with a high-quality onboard action-camera recording. The ground-station DVR records what the receiver sees, including interference and signal loss.

HDMI and digital expansion

SKY04X Pro lists HDMI input up to 720p at 100fps and is positioned for external digital receiver use. SKY04O Pro is also promoted as an option for selected external digital systems, although its panel and input capabilities differ.

Compatibility should be confirmed for the exact Walksnail, HDZero, SKYZONE digital, or other receiver configuration. Required cables, adapters, aspect ratio, refresh rate, latency mode, power supply, and firmware can vary. A product description that mentions a digital system does not mean the required digital receiver or aircraft air unit is included.

Power and batteries

SKY04X Pro accepts 2S–6S LiPo input. SKY04O Pro accepts approximately 6.5–25.2V DC or 5V USB power. Cobra X V4 and M5 can use one 18650 cell, a wider DC or LiPo input, or USB power according to their current specifications.

The required battery is not always included. Users should verify cell type, physical length, polarity, connector, voltage, current capacity, charger, storage procedure, and low-voltage behavior. Lithium batteries must be charged, transported, and stored safely and should not be used when swollen, damaged, overheated, or improperly wrapped.

Head tracking

The three featured goggles include three-axis accelerometer and three-axis gyroscope head-tracking functions. This can control a compatible pan-and-tilt camera or model system when the necessary radio, cable, channel mapping, servos, and setup are available.

Head tracking is not automatic with every aircraft. It must be integrated into the control system and tested while the model is secured before flight.

Local frequency and operating rules

SKYZONE states that its wireless video products are intended for civilian entertainment and should not be operated in violation of local regulations. Permitted frequency bands, channels, transmitter power, licensing, model-aircraft locations, registration, visual-line-of-sight requirements, and recording rules vary by country and area.

The presence of a channel in the receiver menu does not prove that transmitting on that channel is legal. Pilots should verify current local rules and the permitted specification of the aircraft's video transmitter before use.

Safe FPV operation

Wearing goggles blocks direct vision of the aircraft and surroundings. FPV operation should follow applicable visual-line-of-sight and observer requirements, use a safe flying location, and keep people, property, roads, airports, emergency activity, and restricted airspace clear.

The system should be range-tested, antennas installed before powering a video transmitter where required, failsafe configured, batteries secured, DVR and receiver checked, and controls verified before takeoff. A clearer image does not remove the possibility of signal loss, control failure, battery failure, collision, or pilot disorientation.

Current pricing and availability

When checked on July 31, 2026, the current product pages listed SKY04X Pro at $499, SKY04O Pro at a sale price of $435, Cobra X V4 at a sale price of $259, and the M5 FPV Monitor at $162. The homepage and alternate product URLs occasionally displayed different reference prices or preorder labels, so the selected version and final checkout should be treated as the current offer.

Color, 5.0GHz or 5.8GHz version, receiver module, accessories, digital bundle, antenna set, and warehouse availability can change the total price.

Shipping

SKYZONE states that it ships worldwide and uses China, U.S., and EU warehouses. Current product and shipping pages describe approximately one business day for processing and estimated delivery of roughly 7–20 business days, depending on destination, warehouse, courier, customs, and product category.

The official pages currently advertise free shipping for qualifying orders above a low threshold, while checkout calculates the actual charge from destination, weight, and package size. Taxes, duties, battery restrictions, remote-area fees, and courier handling can still vary.

Returns and policy wording

The detailed return policy allows a request within 30 days from delivery. It requires the product to be unopened, in original packaging, unused, and in saleable condition. For change-of-mind, wrong-order, or incorrect-selection returns, the customer pays return shipping, customs duties, taxes, and related charges. Original shipping costs are not refundable.

Approved refunds are described as taking approximately 7–15 working days after inspection. Damaged or defective items on arrival can qualify for replacement at SKYZONE's expense when reported with photographs and order information.

Several product-page FAQ sections contain unrelated or inconsistent wording about returns to a “Concept Store” within one year. Because that conflicts with the detailed 30-day unopened-return policy, buyers should request written confirmation before opening the product if return flexibility is important.

Warranty, firmware, and repair support

SKYZONE currently promotes a one-year or 12-month warranty and provides firmware downloads, technical-support tickets, manuals, replacement face pads, receiver modules, cables, fans, antennas, and other spare parts.

Warranty service depends on the product, serial or order information, proof of purchase, fault, damage cause, region, and repair instructions. Firmware should be selected for the exact hardware version because an incorrect update can disable receiver, DVR, display, or control functions.

Who should consider SKYZONE FPV

SKYZONE is most relevant to analog FPV pilots, racing and freestyle drone users, fixed-wing pilots, hobbyists upgrading from entry-level box goggles, and builders who value replaceable receiver modules, DVR, head tracking, firmware, and spare parts.

Who should compare alternatives

Compare alternatives if a complete ready-to-fly drone package, fully integrated native digital ecosystem, local retail fitting, prescription-lens support, guaranteed domestic repair center, or the lowest-cost beginner kit is the priority.

Final verdict

SKYZONE provides a mature analog FPV viewing range. SKY04X Pro is the premium high-resolution OLED choice, SKY04O Pro offers a lower-cost OLED route, Cobra X V4 is the strongest value box-goggle option, and M5 provides a shared external monitor for pilots, passengers, benches, or ground stations.

The main buying risks are choosing the wrong video ecosystem, misunderstanding what the resolution means for analog reception, overlooking power requirements, and assuming that all channels are legal locally. Confirm the transmitter band, receiver version, digital-expansion needs, focus range, battery, antenna connectors, and return terms before ordering.
